0.53kg F3.8-F22 Industrial Camera Lens / 116mm Focal Length Machine Vision Lens

Brand Name : OPT

Model Number : OPT-VGP116/3.8-1.0X

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Focal Length : 116mm

Working Distance(mm) : 168 | 164.5 | 161.2

Image Circle(mm) : 82mm

Weight : 0.53kg

Magnification x : 0.97X | 1.0X | 1.03X

Distortion(%) : 0.05% | 0.01% | 0.035%

Flange Focal Distance(mm) : 191.6 | 195 | 198.4

Object To Image Distance(mm) : 416.7 | 416.6 | 416.6

Contact Now

0.53kg F3.8-F22 Grampus Series Line Scan Lenses Focal Length 116mm Image Circle 82mm OPT-VGP116/3.8-1.0X

Product Features

◆ Line scan lenses aperture F/#: F3.8-F22

◆ Distortion(%) : 0.05% | 0.01% | 0.035%

◆ Working distance(mm) : 168 | 164.5 | 161.2

◆ Object to image distance(mm): 416.7 | 416.6 | 416.6

◆ Focal length of line scan lenses of grampus series OPT-VGP116/3.8-1.0X is 116mm.

◆ Minimum distortion is 0.01% and distortion at primary magnification.

◆ Magnification: 0.97X | 1.0X | 1.03X

◆ Able to be matched with 82mm image circle and under of line and area scan camera.

◆ Flange focal distance(mm) of OPT-VGP116/3.8-1.0X lens is 191.6 | 195 | 198.4.

◆ Weight of OPT-VGP116/3.8-1.0X line scan lens is 0.53kg.

◆ The suitable camera mount is V58 mount.

Model Explanation

OPT-VGP116/3.8-1.0X

OPT: Brand name

V: V-Mount

GP: Grampus series line scan lenses

116: Focal length 116mm

3.8: F#: 3.8

1.0X: 1.0X primary magnification

Specifications

Product Name	Line Scan Lenses
Model	OPT-VGP116/3.8-1.0X
Focal Length	116mm
Working Distance(mm)	168 \| 164.5 \| 161.2
Aperture F/#	F3.8-F22
Image Circle(mm)	82mm
Magnification x	0.97X \| 1.0X \| 1.03X
Distortion(%)	0.05% \| 0.01% \| 0.035%
Flange Focal Distance(mm)	191.6 \| 195 \| 198.4
Object To Image Distance(mm)	416.7 \| 416.6 \| 416.6
Camera Interface	V58
Weight(Kg)	0.53kg

Resolution Comparison

0.53kg F3.8-F22 Industrial Camera Lens / 116mm Focal Length Machine Vision Lens

Image taken via Grampus Image taken via other lens

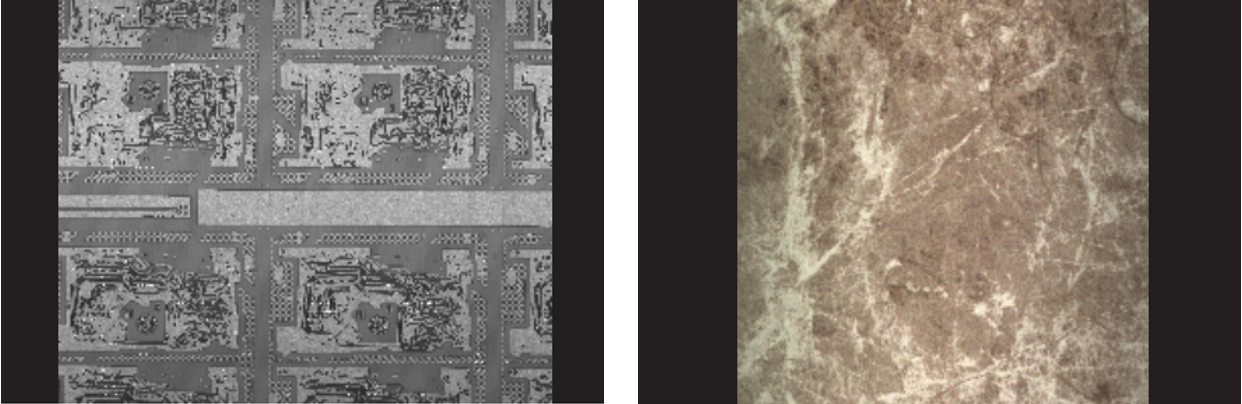

Application Examples:

Defect dection of PCB board Detection of texture and color on floor tile surface

Dimensions (mm)

OPT-VGP116/3.8-1.0X
