24Volt Collimated Backlight

Brand Name : OPT

Model Number : OPT-FP120100

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Model : OPT-FP120100

Product name : Collimated Backlights

Color : Blue/White/Green/Red

Output : W: 24V/8.6W R: 24V/6.9W B: 24V/6.9W G: 24V/6.9W

Channels : 1

Housing Size（Length） : 120

Emitting Size（Diameter） : 90

Feature : Highly Collimated Illumination

Contact Now

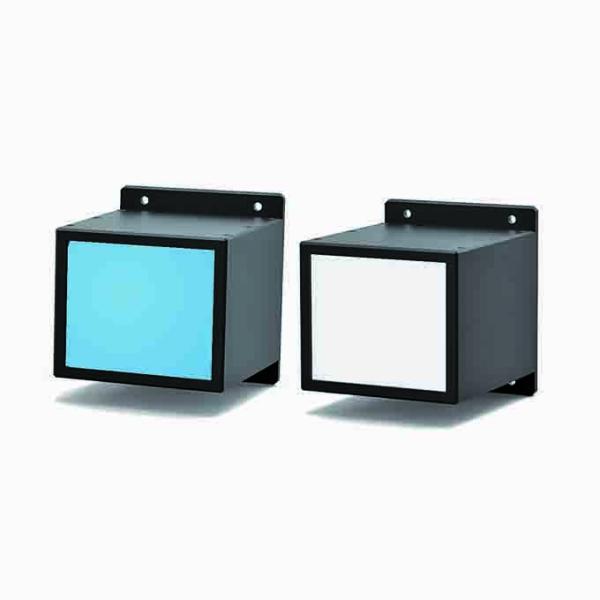

Collimated Backlights 24V Machine Vision Backlight Highly Collimated Illumination OPT-FP Series OPT-FP120100

Product Features

◆ The collimated backlight which can provide highly collimated illumination when inspection or defects detection or mechanical parts gauging.

◆ The collimated backlight source are designed to very compact so that it can take up very small space but for better effect.

◆ It can provide uniform and collimated illumination for high precision measurement in machine vision industry.

Application Cases

◆ Mechanical workpieces measurement

◆ Electronic components contour inspection

Specifications

Model	OPT-FP120100
Color	Red/White/Blue/Green
Output	W: 24V/8.6W R: 24V/6.9W B: 24V/6.9W G: 24V/6.9W
Channels	1
Housing Size(Length)	120
Recommended Controller	OPT-DPA2024E
Emitting Size(Diameter)	90

Dimensions (mm)

OPT-FP120100

Product Features

24Volt Collimated Backlight

Applications: Mobile phone screen inner frame positioning
